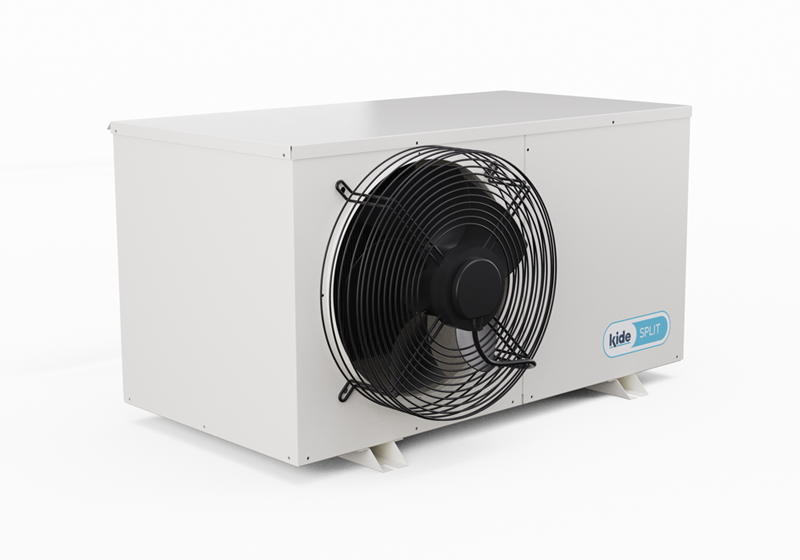

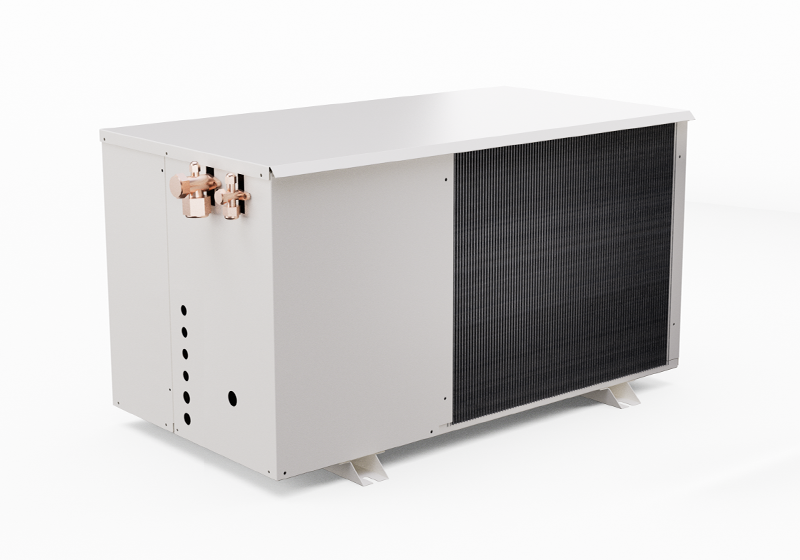

ECI - Silent

Silent Condensing Units for Split systems with small and medium volume cold rooms, in medium (0°C ÷ 5°C) and low (-20°C) temperature applications.

Unidades condensadoras silenciosas Kide ECI
REQUEST A QUOTE

General features

  • Pre-charged with nitrogen.
  • Prepared for R449A (enquire about other refrigerants).
  • Scroll compressor (three-phase).
  • Hermetic compressor on single phase units.
  • Compressors located in a soundproofed compartment separated from the air flow
  • Liquid injection in low-temperature equipment.
  • Oversized condenser coil with low speed fans
  • Condensation control by pressure switch (series 100 - 200).
  • Electrical power switchboard and integrated maneuvering.
  • Magneto thermic protection (three-phase units).
  • Fan speed variation by condensing pressure control (series 300 - 400).

Optional features

  • Winter Kit.
  • Control panel with multifunction electronic control (with remote control).
  • Oil separator (200 - 300 - 400 series).

Energy efficiency

Our equipment's development is focused on optimising the refrigeration system, using compressors manufactured by leading brands and featuring a design that ensures top performance.

In addition, our tendency to use natural or A2L refrigerants allows us to offer equipment with minimal environmental impact, since sustainability is one of KIDE's strategic focuses.

Documentation

Data sheet
Download catalogue
